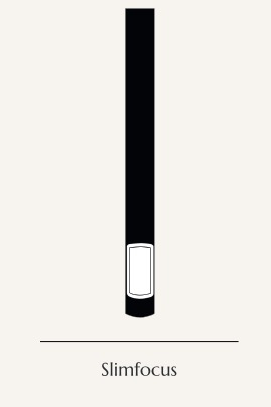

Slimfocus

Wall, stand or suspended · Ø 325 mm · wood, gas

Entwurf Dominique Imbert · 2013

Wood
Gas
4,5 kW
8 versions

Very slim fireplace, fixed or rotating. The wood version draws its combustion air through an external air duct and is suitable for low-energy houses; you control the gas flame by remote control.

Request a consultation Manuals & data sheets

Hängend
325 mmØ
suspended, wall or pedestalMontage
4,5 kWWood
82 %Wirkungsgrad

Bilder

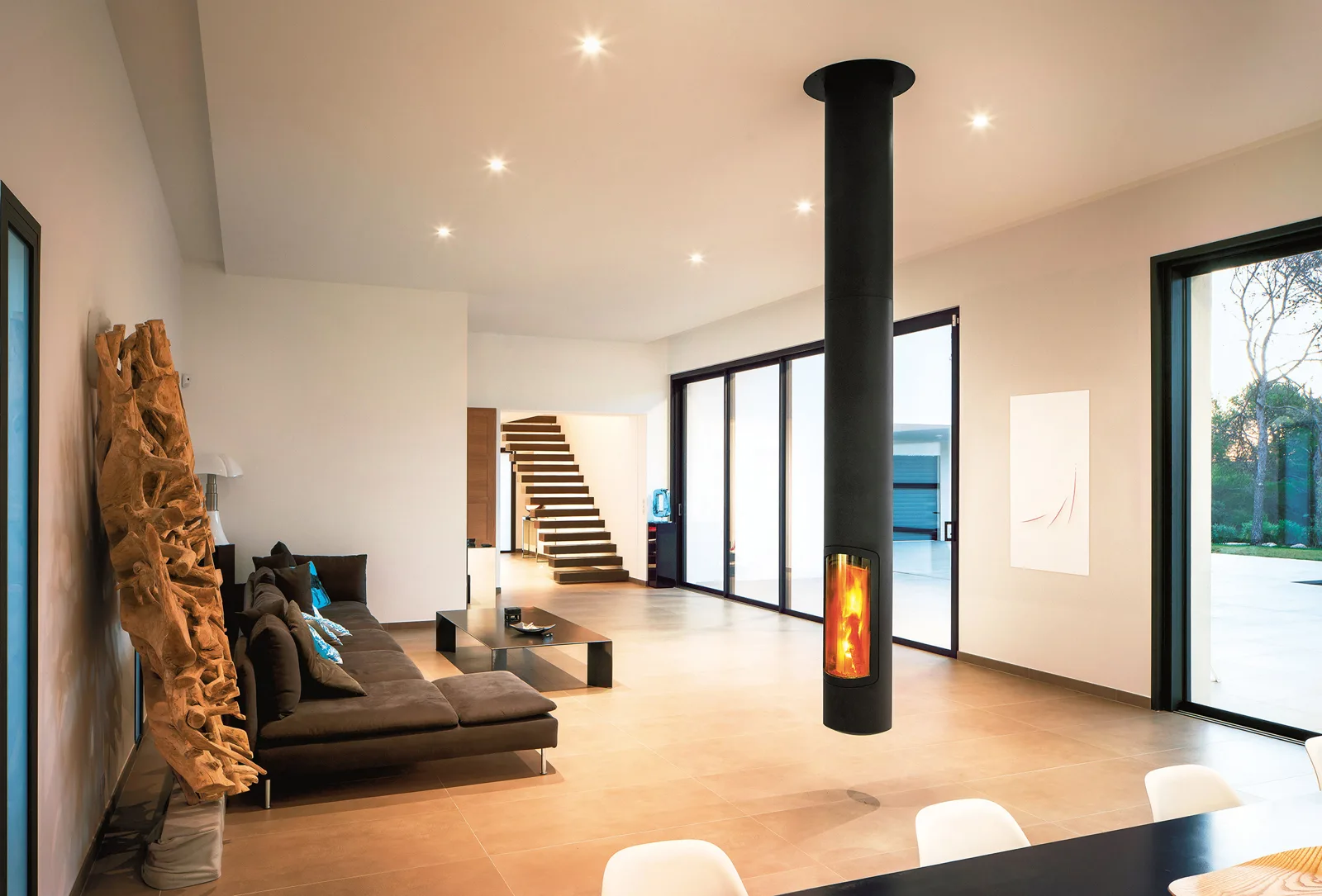

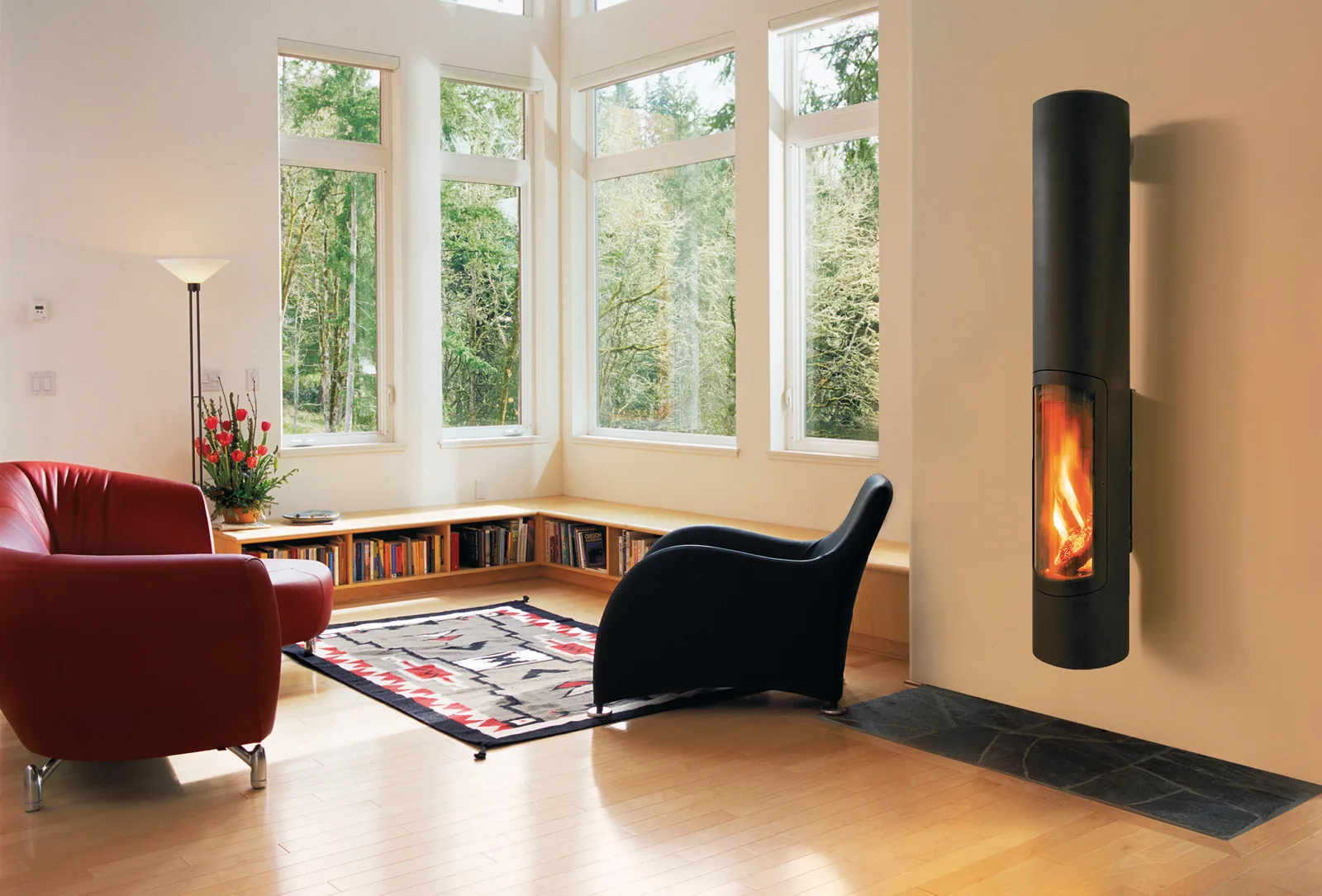

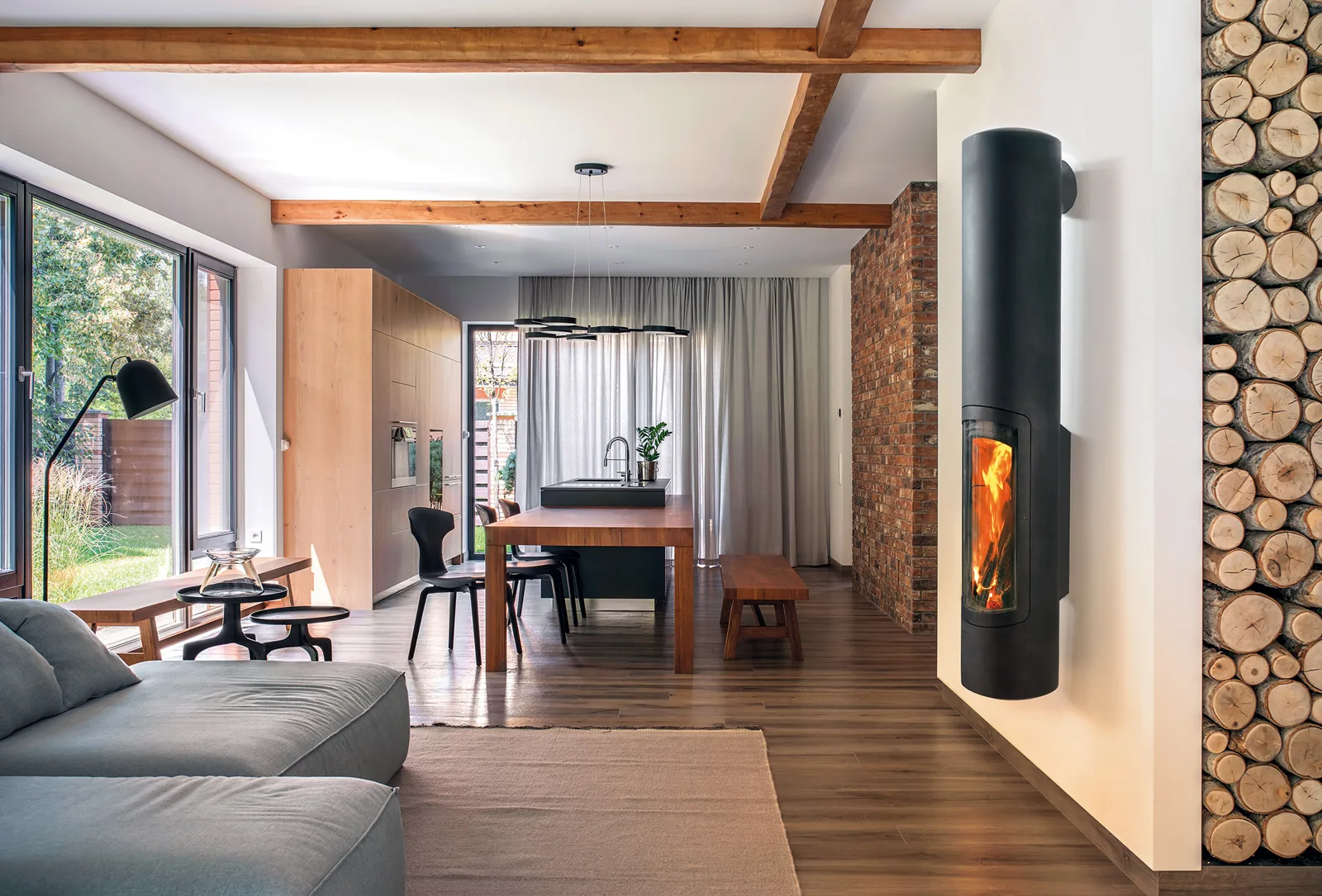

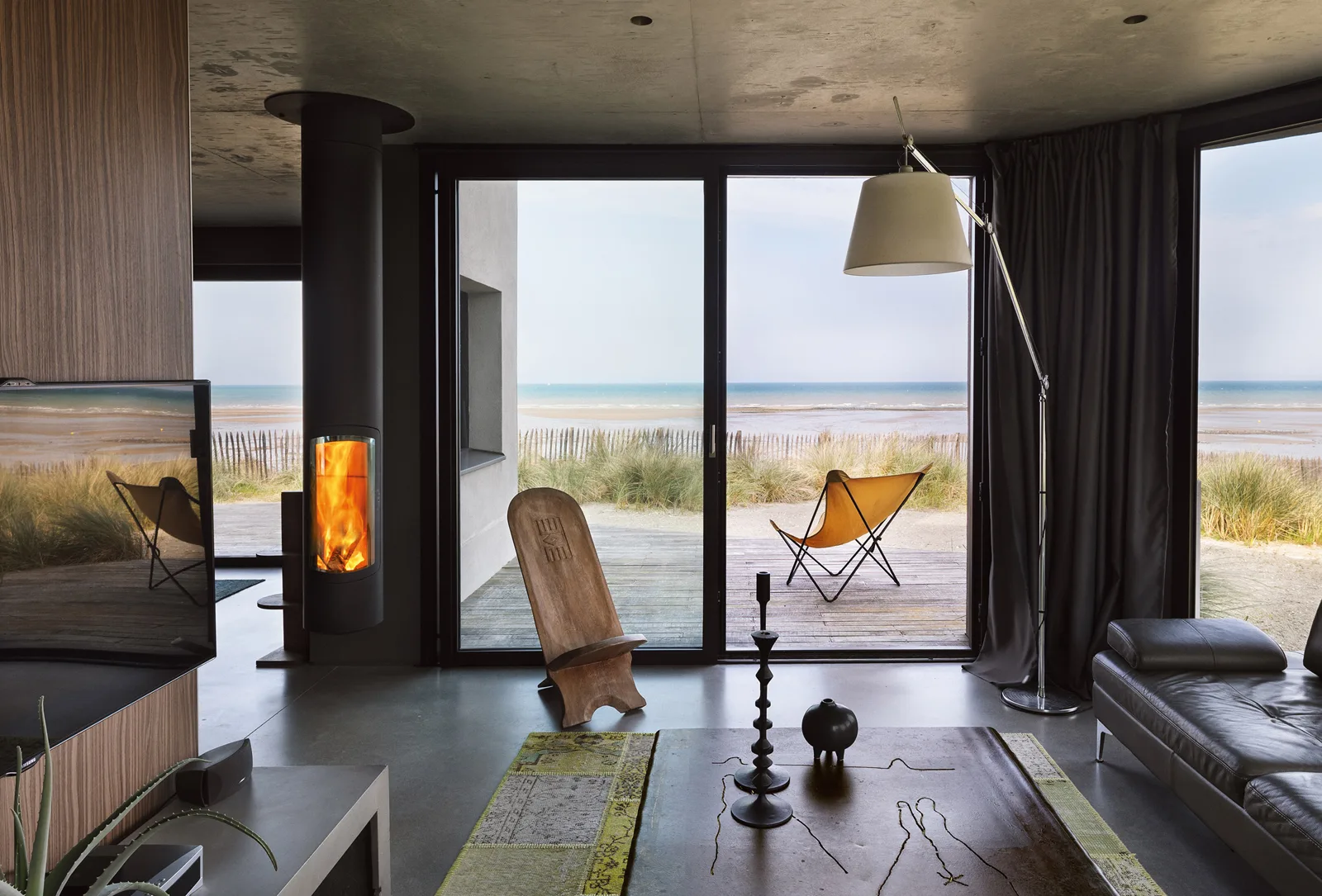

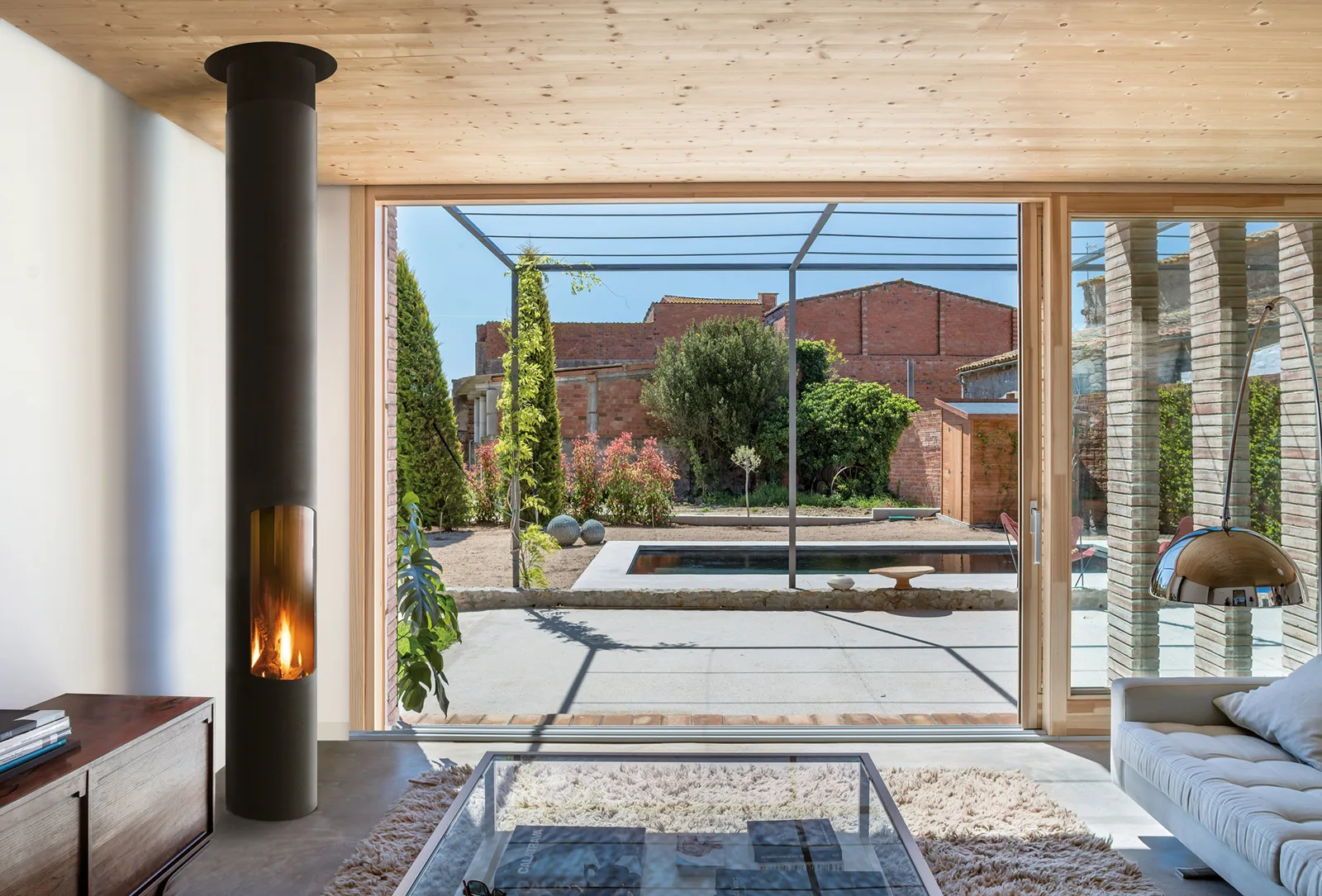

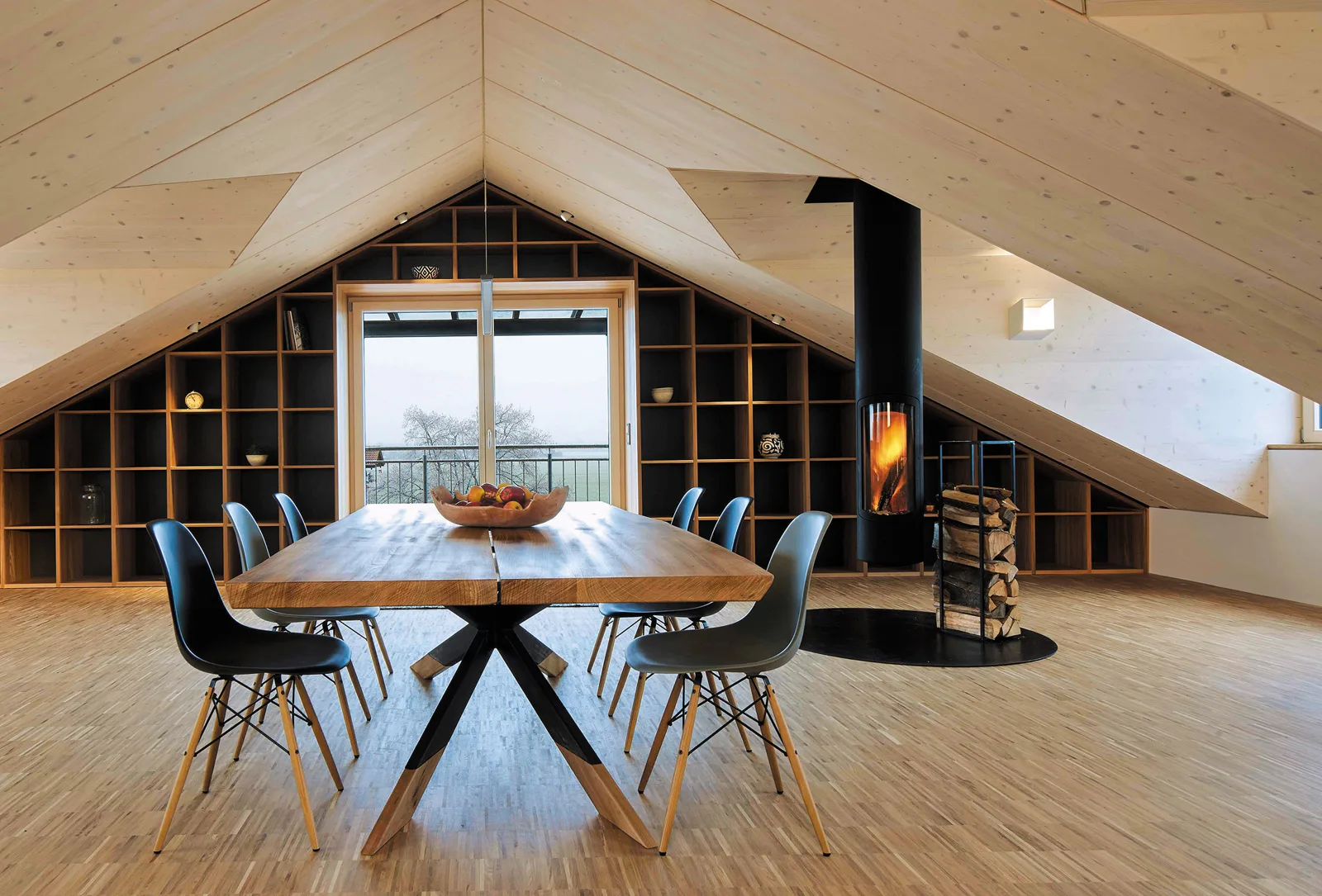

Slimfocus in situ

The Slimfocus is the slimmest : a narrow cylinder, reduced to the essentials. With 4,5 kW, the wood version suits well-insulated houses; it draws its combustion air through an external duct. Suspended (fixed or rotating), wall-mounted or on a pedestal – also available as a gas model.

Photos: Création

Ausführungen

Your Slimfocus – just the way it suits you.

Wood

Slimfocus mit Fuss

Holz, geschlossen; schwarz matt

Nominal heat output
4,5 kW

Width / Ø
324 mm

Gewicht
180 kg

Rauchrohr
150 mm

Enquire about this version
Wood

Slimfocus freihängend

Holz, geschlossen; schwarz matt

Nominal heat output
4,5 kW

Width / Ø
324 mm

Gewicht
180 kg

Rauchrohr
150 mm

Enquire about this version
Wood

Slimfocus freihängend LAS

Holz, geschlossen, LAS; schwarz matt

Nominal heat output
4,5 kW

Width / Ø
324 mm

Gewicht
180 kg

Rauchrohr
150 mm

Enquire about this version
Wood

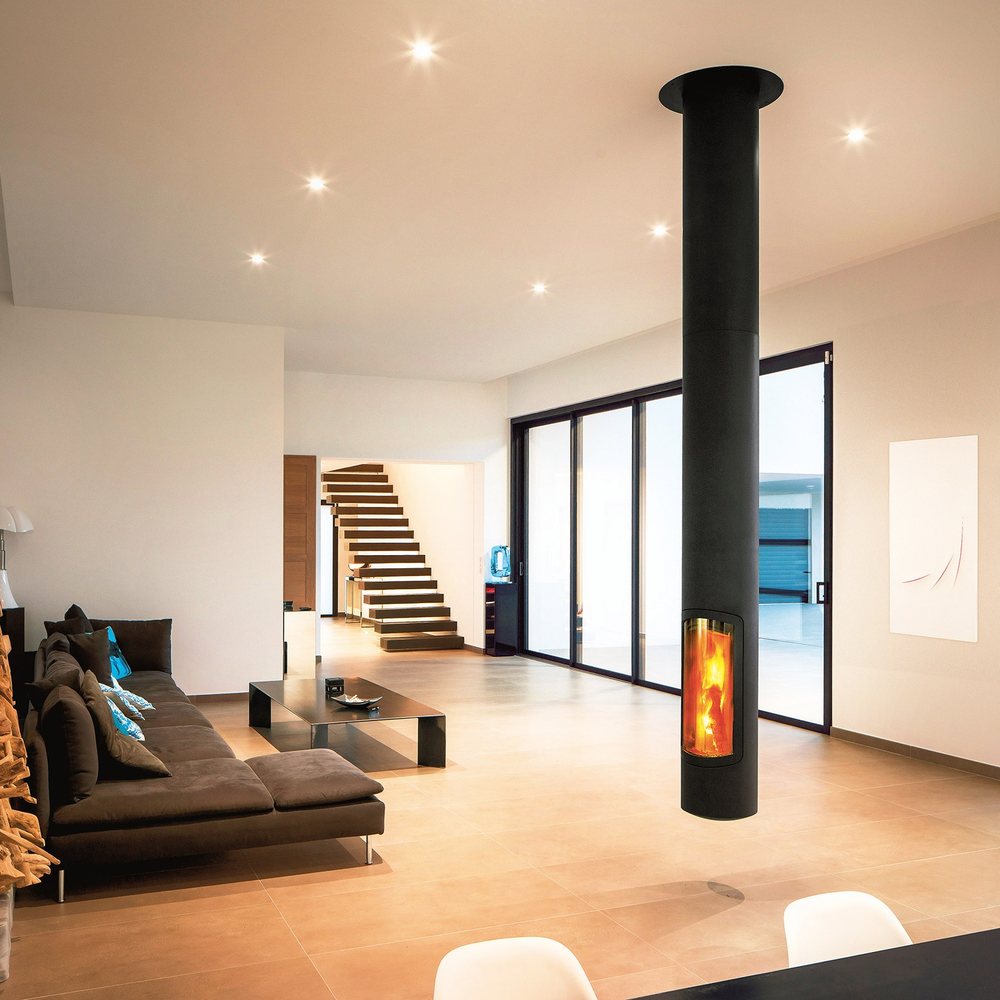

Slimfocus freihängend und drehbar

Holz, geschlossen, drehbar; schwarz matt

Nominal heat output
4,5 kW

Width / Ø
324 mm

Gewicht
180 kg

Rauchrohr
150 mm

Enquire about this version
Wood

Slimfocus freihängend und drehbar LAS

Holz, geschlossen, drehbar, LAS; schwarz matt

Nominal heat output
4,5 kW

Width / Ø
324 mm

Gewicht
180 kg

Rauchrohr
150 mm

Enquire about this version
Gas

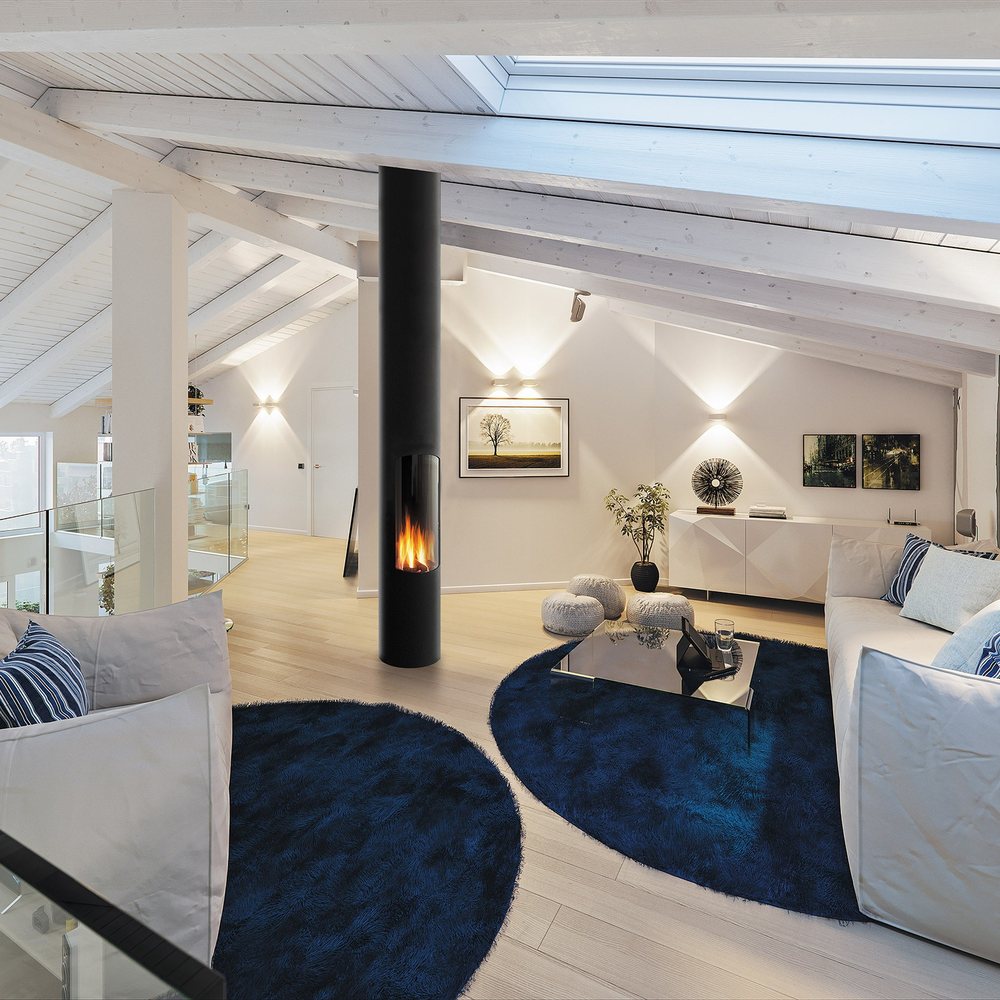

Slimfocus mit Fuss GAS

Gas, geschlossen, LAS; schwarz matt

Width / Ø
324 mm

Gewicht
180 kg

Rauchrohr
100 / 150 mm

Enquire about this version
Wood

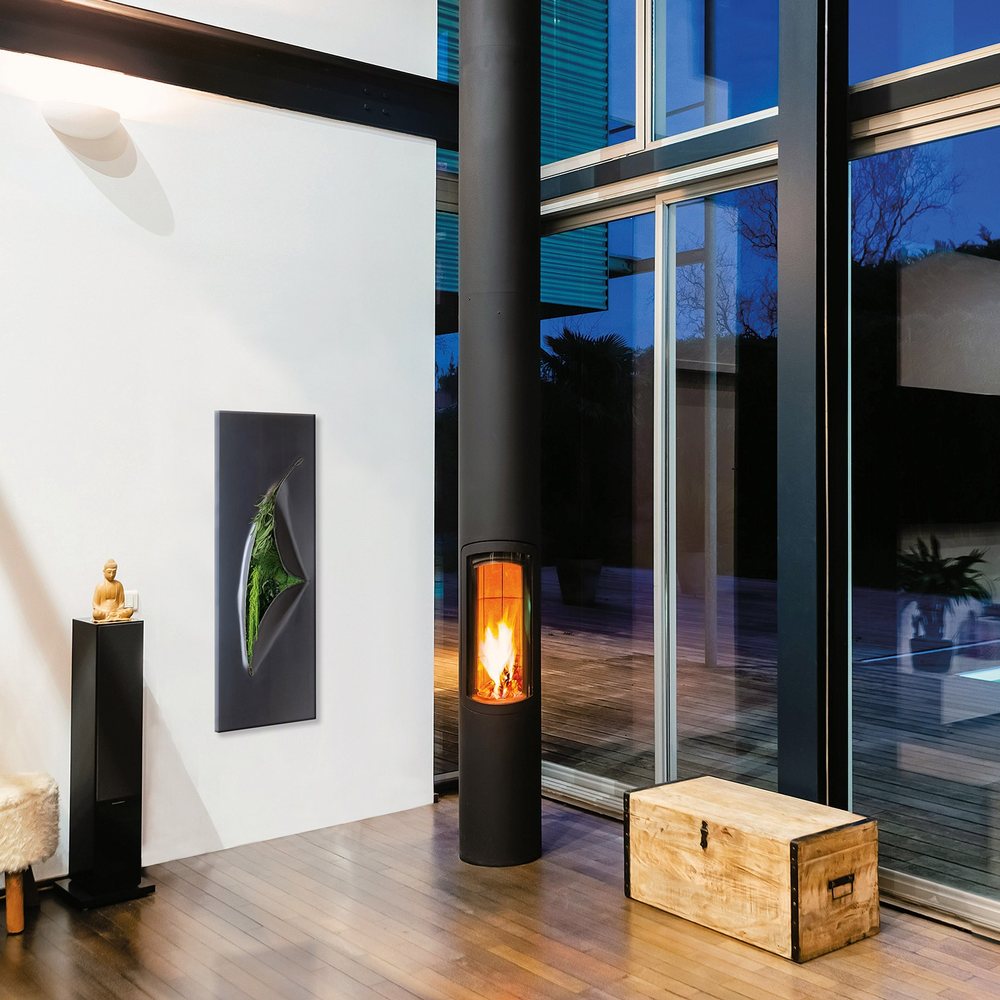

Slimfocus mit Fuss LAS

Holz, geschlossen, LAS; schwarz matt

Nominal heat output
4,5 kW

Width / Ø
324 mm

Gewicht
180 kg

Rauchrohr
150 mm

Enquire about this version
Wood

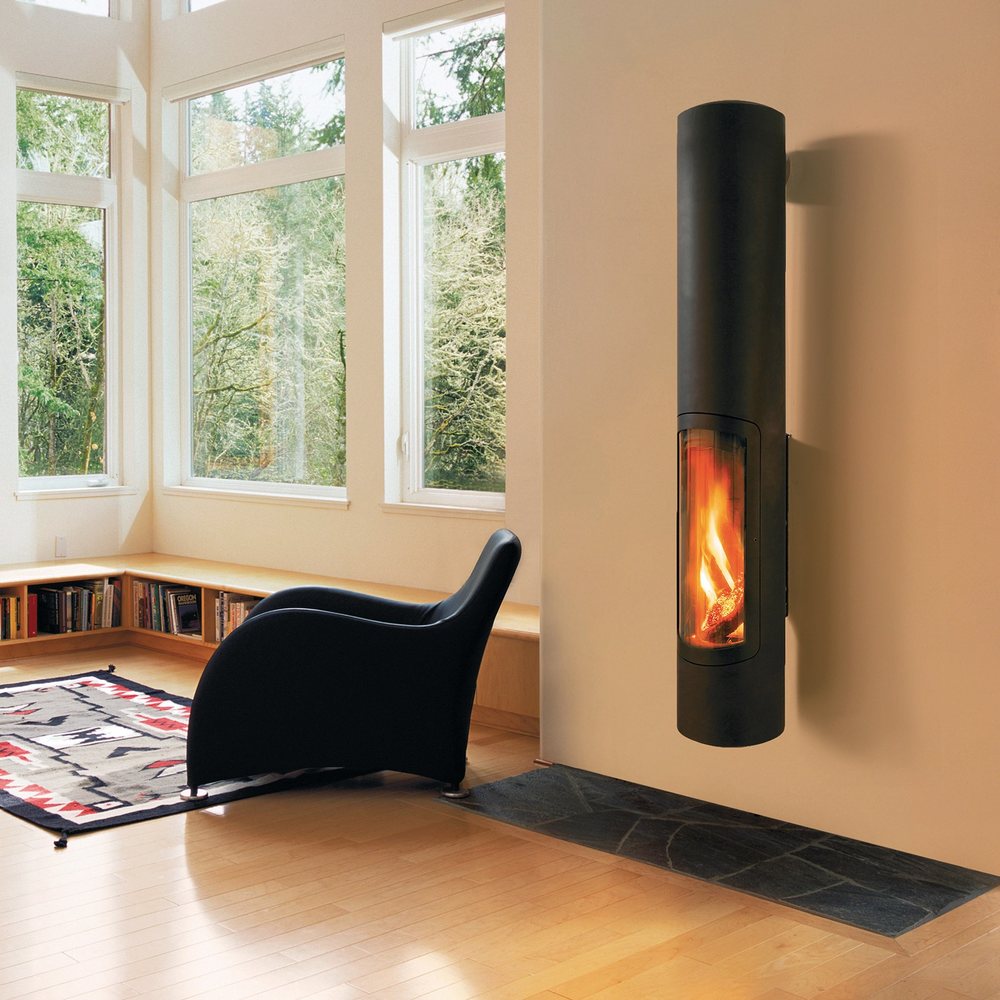

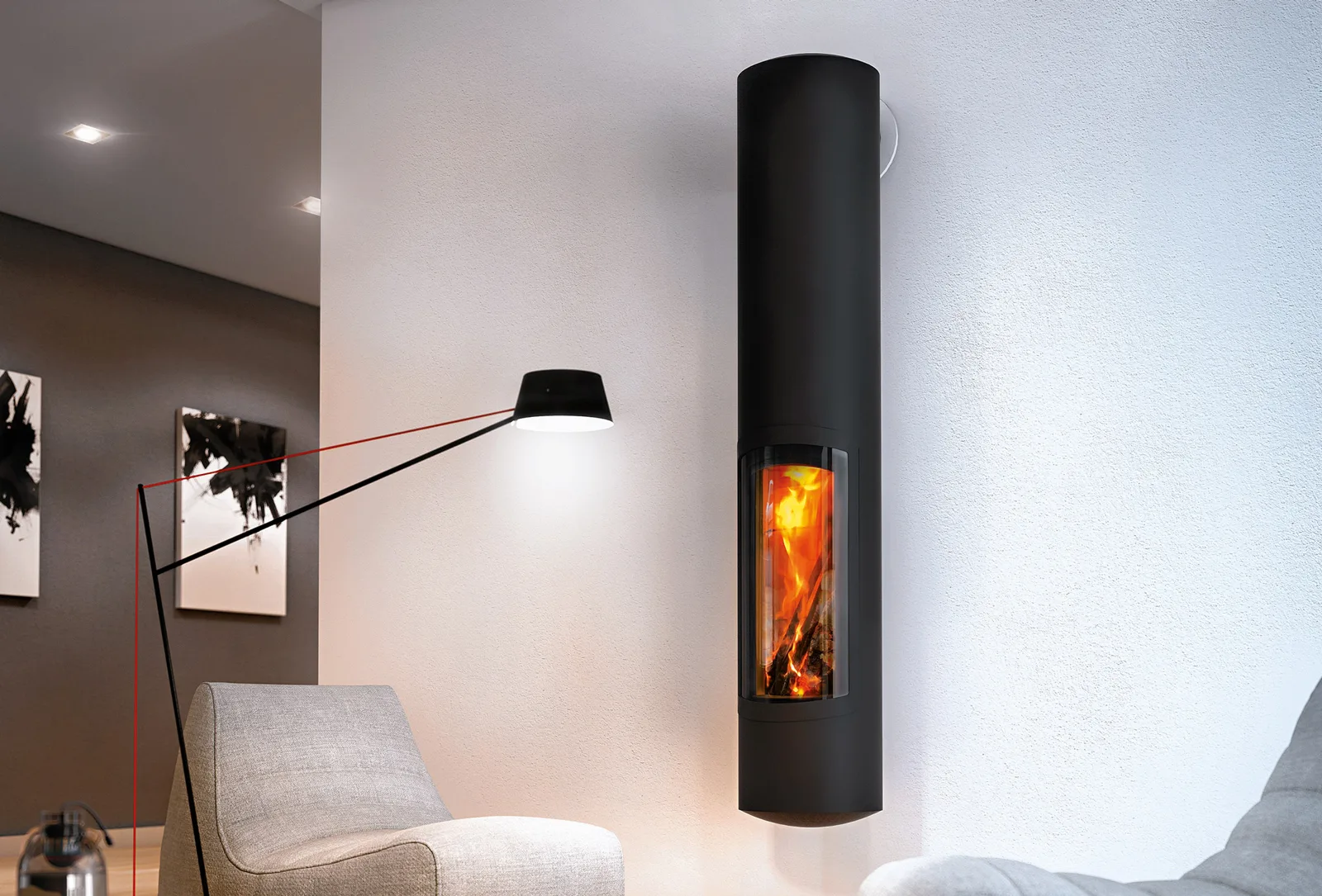

Slimfocus mural (Wandmodell)

Holz, geschlossen; schwarz matt

Nominal heat output
4,5 kW

Width / Ø
324 mm

Gewicht
89 kg

Rauchrohr
150 mm

Enquire about this version

Technik

Technical data

Manufacturer's data per version. For planning, we check the chimney, structural load and air supply at your home.

Angabe	Slimfocus mit FussWood	Slimfocus freihängendWood	Slimfocus freihängend LASWood	Slimfocus mit Fuss GASGas	Slimfocus mit Fuss LASWood	Slimfocus mural (Wandmodell)Wood
Nominal heat output	4,5 kW	4,5 kW	4,5 kW	–	4,5 kW	4,5 kW
Wirkungsgrad	82 %	82 %	82 %	–	82 %	82 %
Width / Ø	324 mm	324 mm	324 mm	324 mm	324 mm	324 mm
Depth	324 mm	324 mm	324 mm	324 mm	324 mm	324 mm
Gewicht	180 kg	180 kg	180 kg	180 kg	180 kg	89 kg
Rauchrohr	150 mm	150 mm	150 mm	100 / 150 mm	150 mm	150 mm
Anschluss	oben	oben (hängend am Rauchrohr)	oben (hängend am Rauchrohr)	oben	oben	oben
Flue gas temperature	220 °C	220 °C	220 °C	–	220 °C	220 °C
Flue gas mass flow	5,7 g/s	5,7 g/s	5,7 g/s	–	5,7 g/s	5,7 g/s
Room-air-independent (sealed)	–	–	yes	yes	yes	–
