Edofocus
Entwurf Dominique Imbert · 1990
- Wood
- 18 kW
- 3 versions
Wall version of the Agorafocus in matt black with a glazed wood firebox on a pedestal. The flue pipe connection can go either upwards to the ceiling or backwards into the wall.
Wand- 630 mmØ
- Wall, ceiling or pedestalMontage
- 8–18 kWWood
- 81 %Wirkungsgrad
Bilder

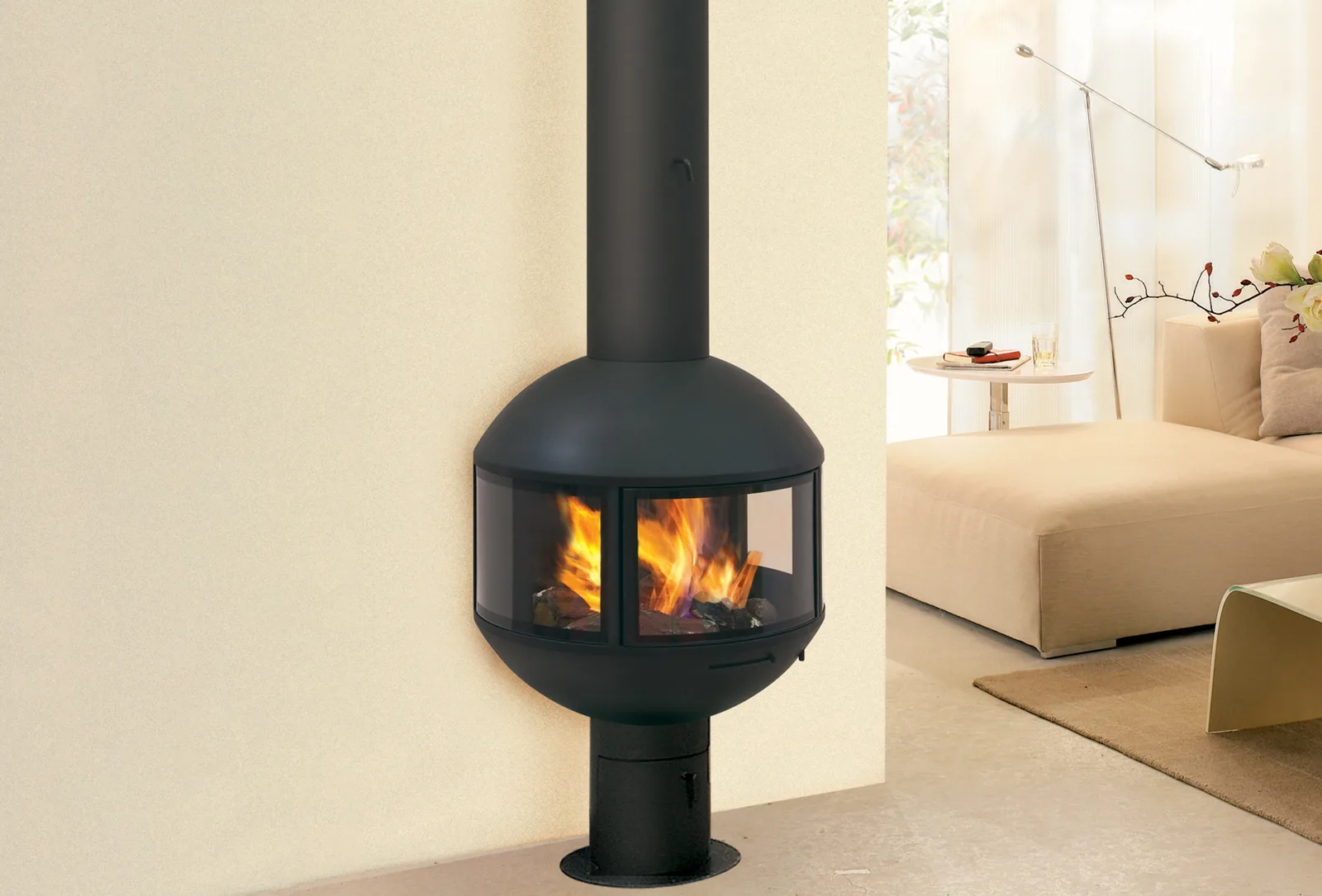

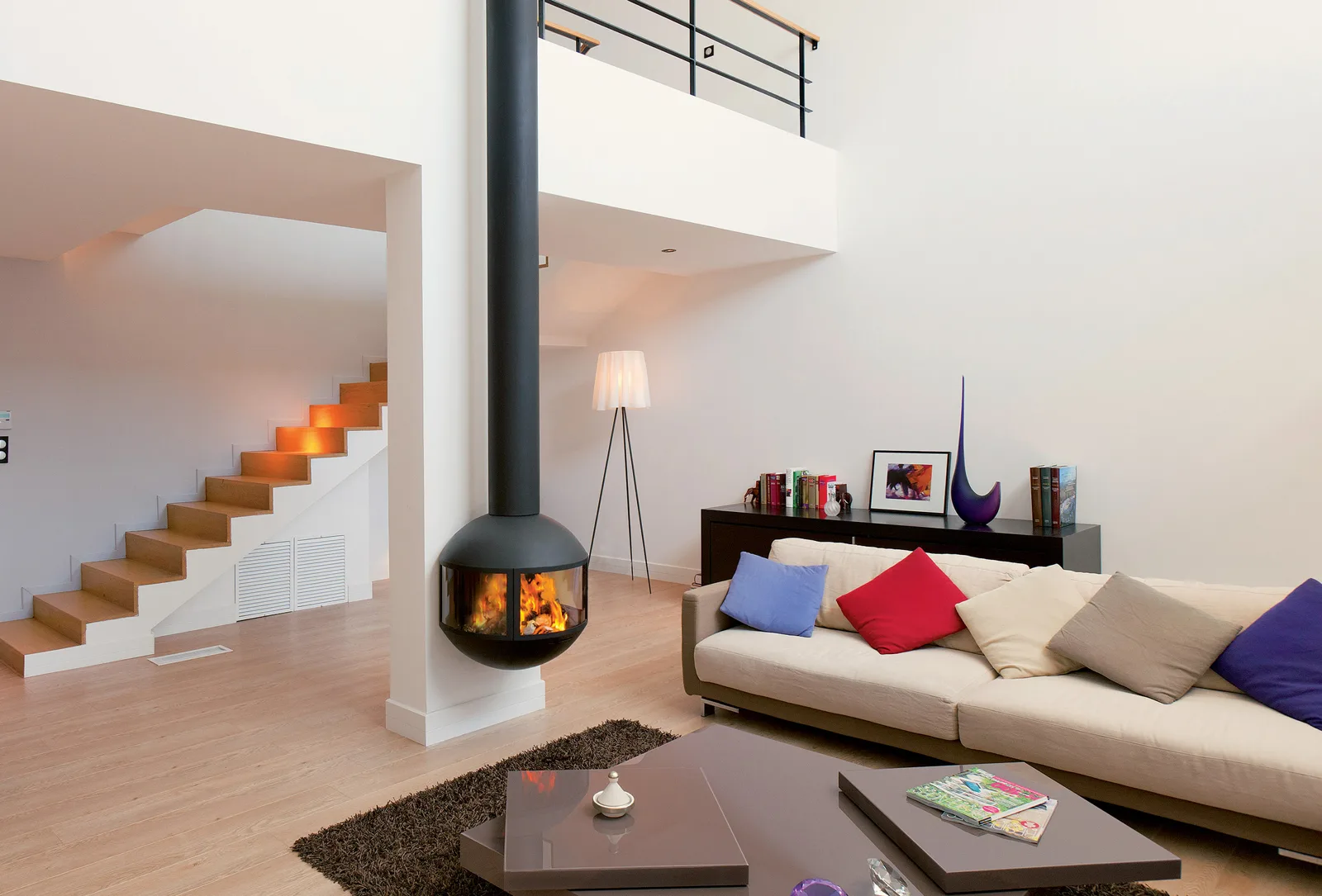

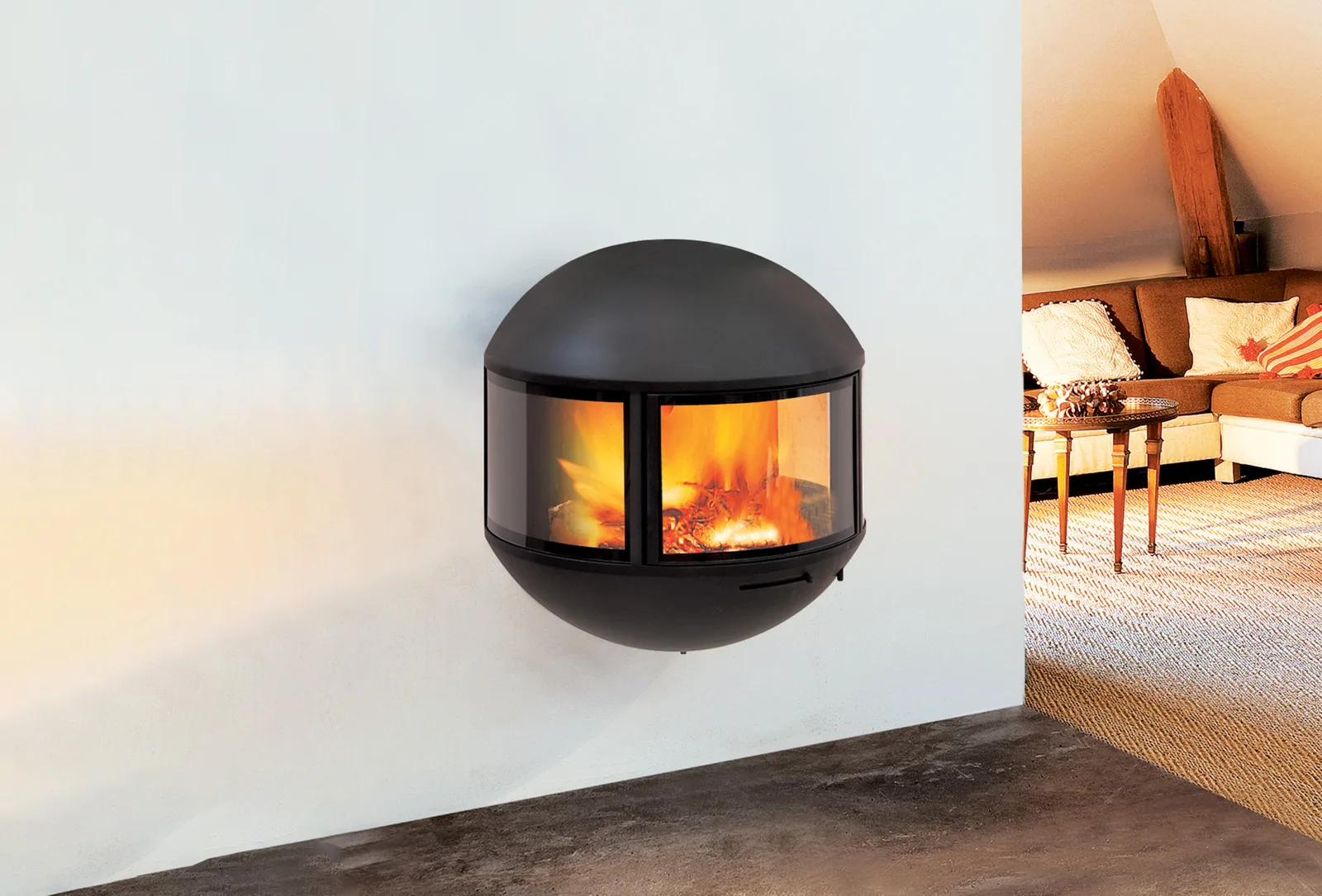

Edofocus in a room

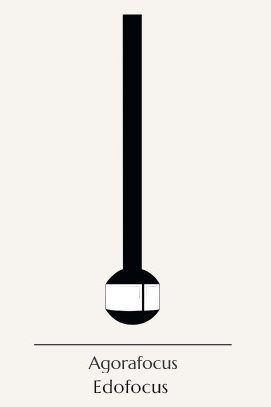

The Edofocus is the wall version of the Agorafocus, originally designed for a house in Japan. The glazed firebox offers good efficiency; it can be connected through the wall, through the ceiling or mounted on a pedestal.
Photos: Création
Ausführungen
Your Edofocus – just the way it suits you.
-

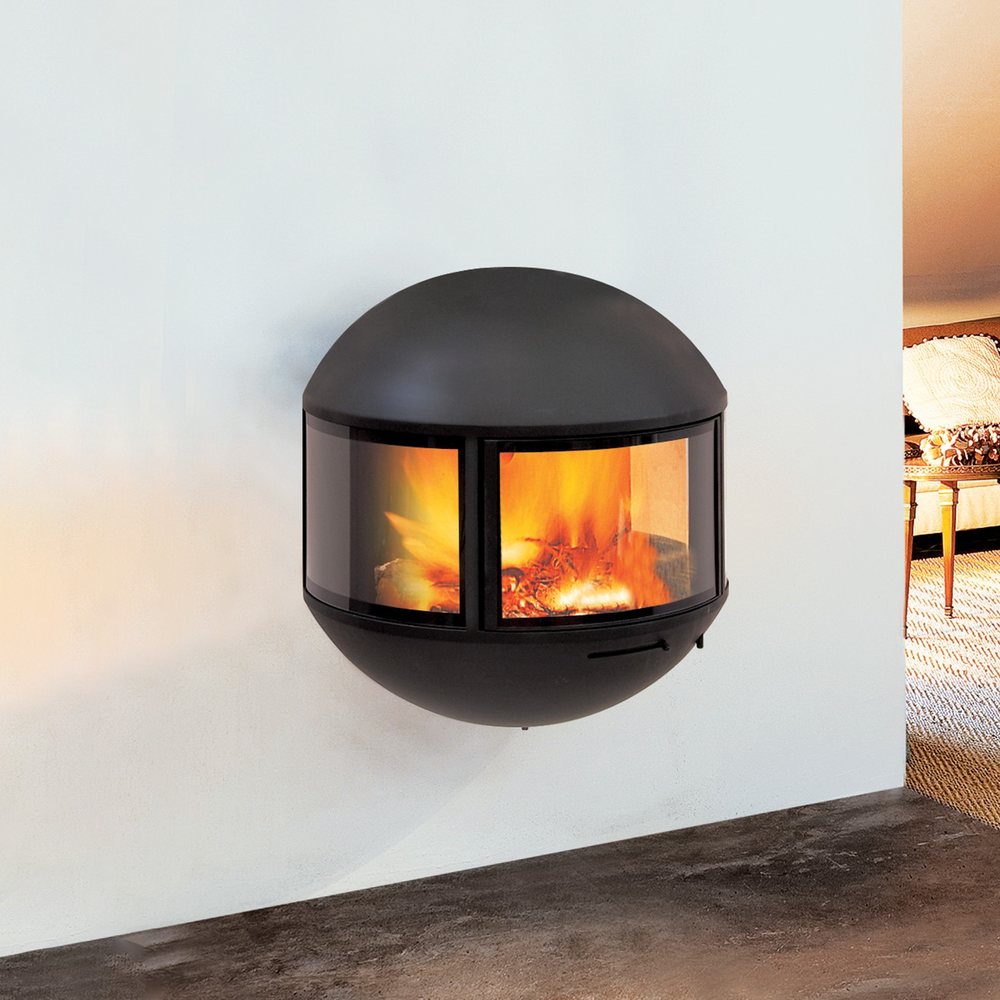

WoodEdofocus 631 DA (Anschluss hinten)
Holz, geschlossen; schwarz matt
- Nominal heat output
- 18 kW
- Width / Ø
- 630 mm
- Gewicht
- 47 kg
- Rauchrohr
- 213 / 219 mm
-

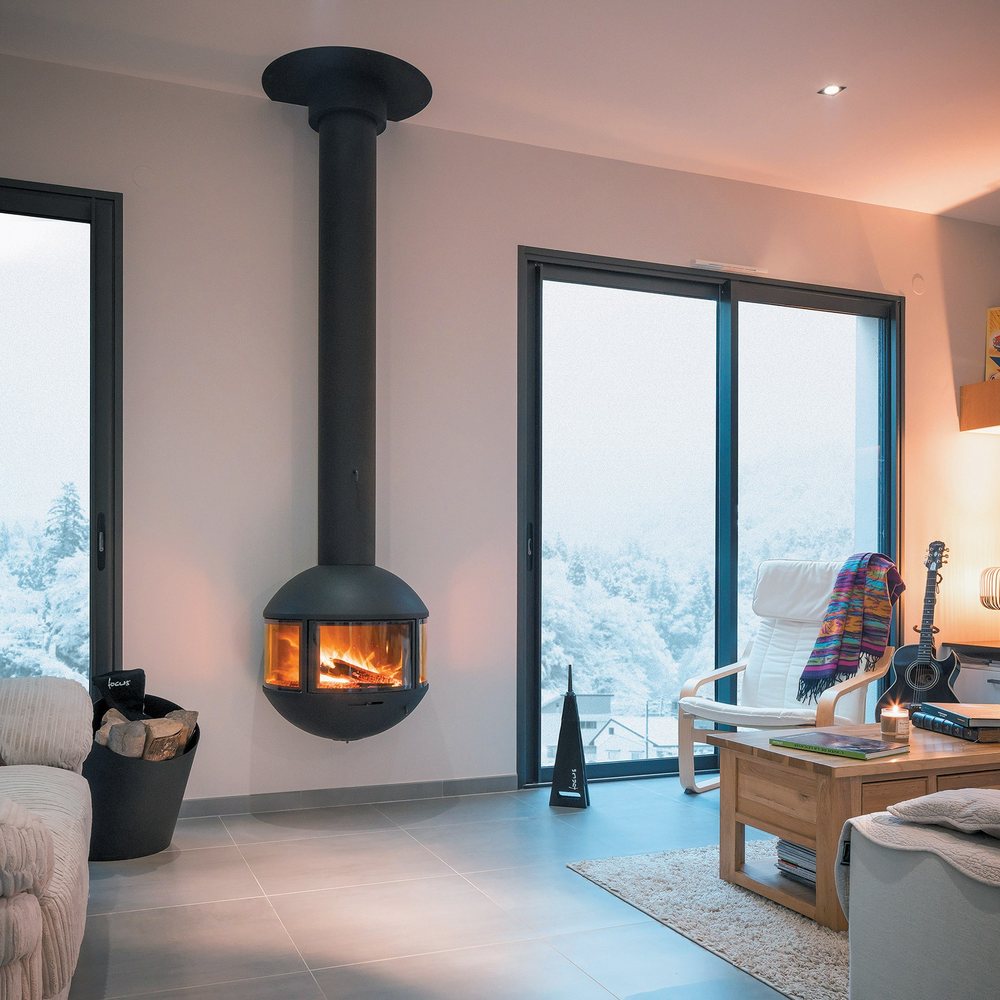

WoodEdofocus 631 DV (Anschluss oben)
Holz, geschlossen; schwarz matt
- Nominal heat output
- 18 kW
- Width / Ø
- 630 mm
- Gewicht
- 47 kg
- Rauchrohr
- 213 / 219 mm
-

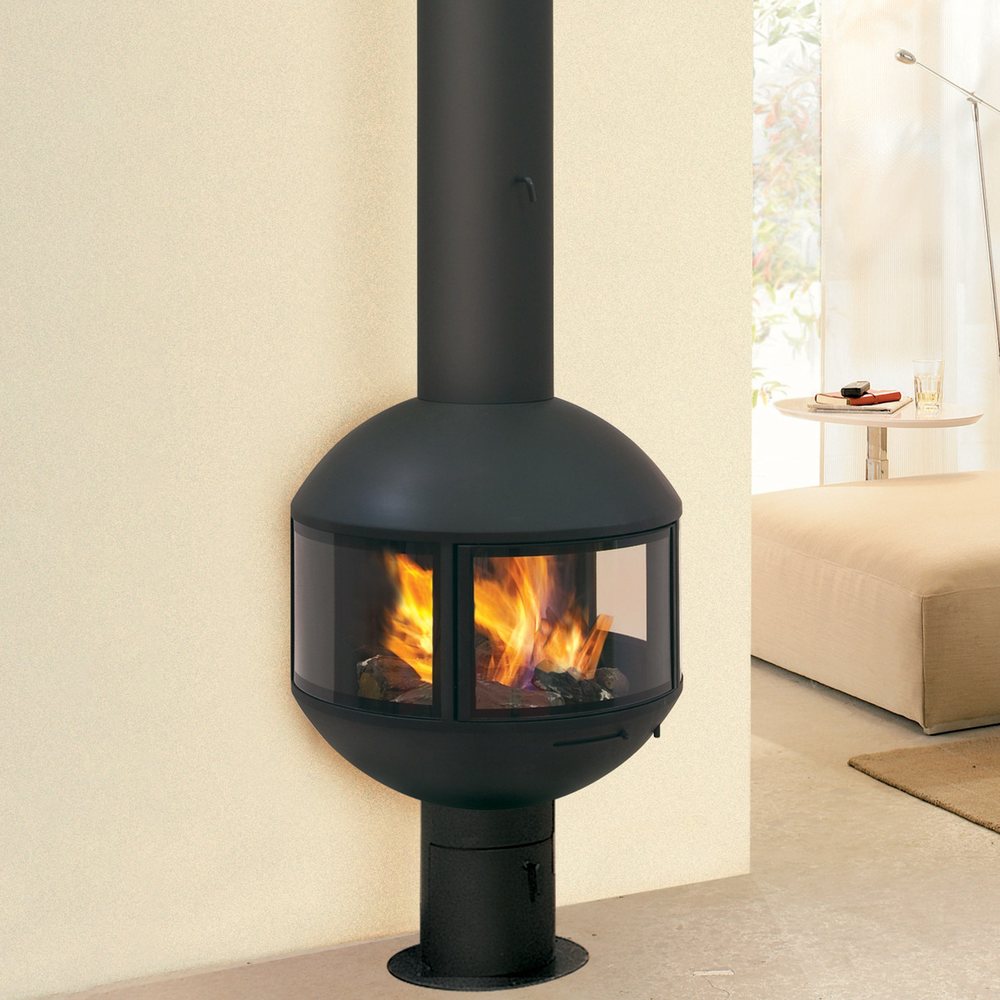

WoodEdofocus 631 DV mit Fuss (Anschluss oben)
Holz, geschlossen; schwarz matt
- Nominal heat output
- 18 kW
- Width / Ø
- 630 mm
- Gewicht
- 47 kg
- Rauchrohr
- 213 / 219 mm
Technik
Technical data
Manufacturer's data per version. For planning, we check the chimney, structural load and air supply at your home.
| Angabe | Edofocus 631 DA (Anschluss hinten)Wood | Edofocus 631 DV (Anschluss oben)Wood |
|---|---|---|
| Nominal heat output | 18 kW | 18 kW |
| Wirkungsgrad | 81 % | 81 % |
| Width / Ø | 630 mm | 630 mm |
| Depth | 630 mm | 630 mm |
| Gewicht | 47 kg | 47 kg |
| Rauchrohr | 213 / 219 mm | 213 / 219 mm |
| Anschluss | hinten | oben |
| Flue gas temperature | 300 °C | 300 °C |
| Flue gas mass flow | 21,2 g/s | 21,2 g/s |
Unterlagen
Manuals & data sheets
To view and download. You will receive the installation instructions and all documents for the chimney sweep from us during planning and handover.
To the Edofocus
PDFFor all models
PDF
PDF
PDF
PDF
PDFAccessories & options
To go with it
- Abgasrohr +1 dm
- Abzweigknie DN180/200
- Montageplatte Wandmodelle
- Tragegestell Abgang oben
- Tragegestell Abgang hinten
- Kaminhandschuh Gant
- Blasrohr Bouffafocus
- Holzträger Cadifocus
- Kaminbesteck Deltafocus
- Blasebalg Éolifocus
- Holzträger Kasifocus
- Holzträger Kylindrofocus
- Kaminbesteck Stannfocus
- Holzträger Ufocus
- Außenluftanschluss
- Wood
A real wood fire with a beautiful flame and radiant heat.
partner near Gifhorn
Experience the Edofocus live.
In our showroom in Ausbüttel we show you fireplaces with a live fire – and plan the flue routing, structural load and installation with you.
